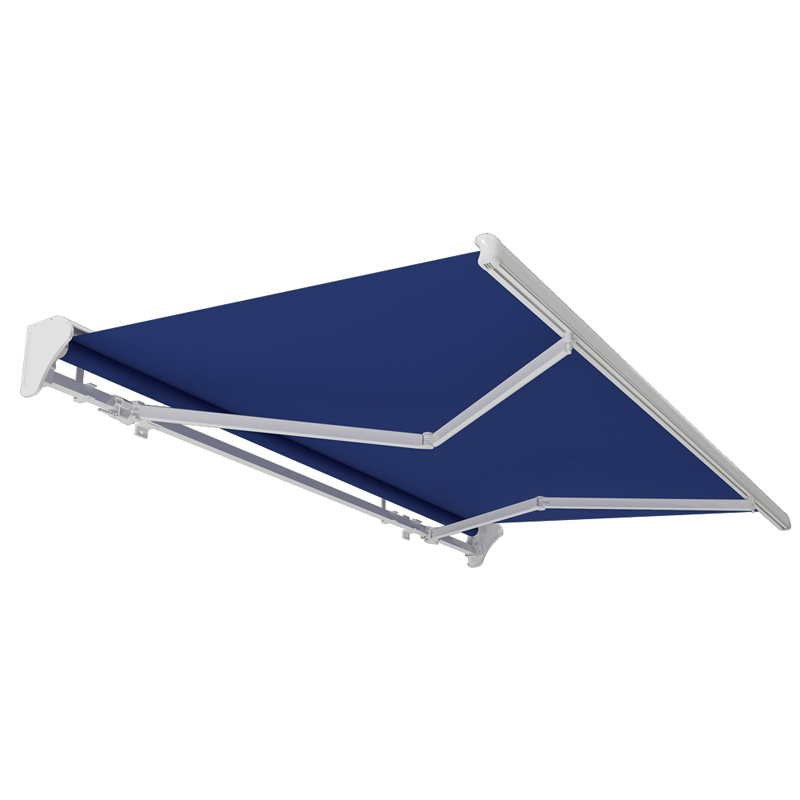

Semi-Cassette Awning, which can protect the fabric from dust and rain when it is closed. It is available with manual operation as well as motorized operation. The working inclination is 5°~ 7 5°. The maximum width is 6.0 m and projection 4.0 m.

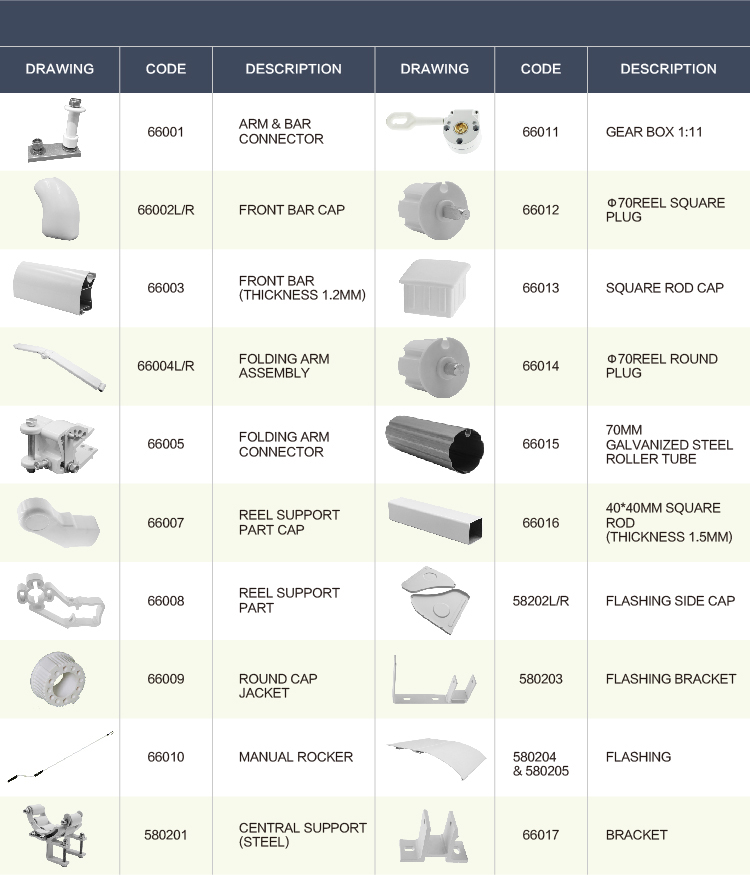

Product Name	A500 Garden Awning Components
Roller	Galvanized steel dia 70mm or dia 78mm
Front bar	Aluminum 90x65mm
Square bar	Steel 40x40mm
Flashing(UPPER)	128.8mm
Flashing(NETHER)	109mm
Arm	Aluminium 55x27mm/60x30mm
Gear box	1:11
Adjusted-angle	5 to 75
Frame	Outdoor powder coated
Connector	Aluminum die cast
Max size per unit	Width 6.0m,projection 4.0m
Arms available	1.5m/2.0m/2.5m/3.0m/3.5m/4.0m
