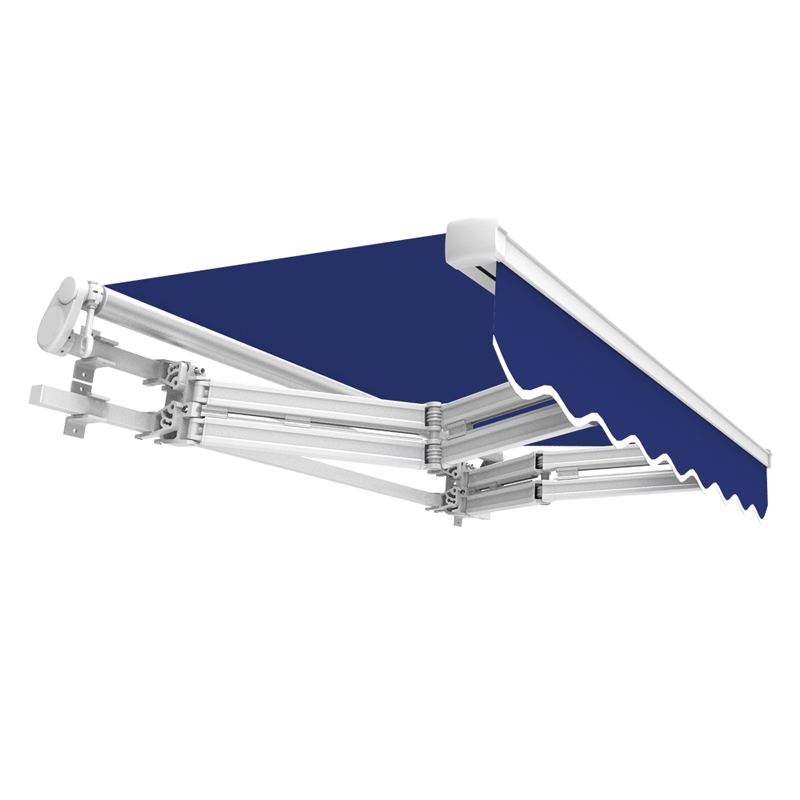

This big mac awning is designed with double arm set and extra bigger front bar which strengthen the whole structure. The maximum arm size is 5.0m. The maximum space it can cover is 30 square meter. Same to all other Greenawn awnings, pure aluminum material 6063 and high quality powder coating MetalBond keep the awning from corrosion and color changed in the open air.

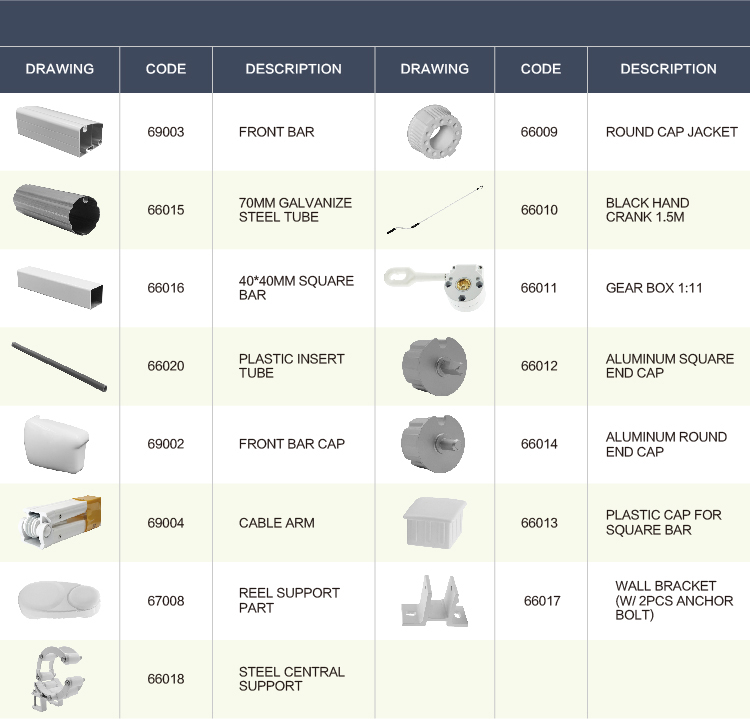

Product Name	A900 Retractable Awning Components
Roller	70mm,80mm Aluminum or Steel
Front bar	Aluminum 86.35x69.1mm
Square bar	Steel 40x40mm
Arm	76.2x33.8x1.82mm/66.5x32x1.37mm
Extra strong arm	69x33mm/78x38mm
Gear box	1:11
Adjusted-angle	3 to 75
Frame	Outdoor powder coated
Connector	Aluminum die cast
Max size per unit	Width 6.0m,projection 5.0m
Arms available	1.5m/2.0m/2.5m/3.0m/3.5m/4.0m/4.5m/5.0m

Application Cases Of Awning Components
