Heavy duty structure, quality dual-spring tension arm structure, robust and durable folding arms, elegant built-in rain channel aluminum front bar, protect the valance from dropping rain. It can cover large areas of up to 6.0 m in width and 4.0 in projection with only two arms. Thanks to several awning structures join available, meet large sunshade area request. Support manual and motorized operations.

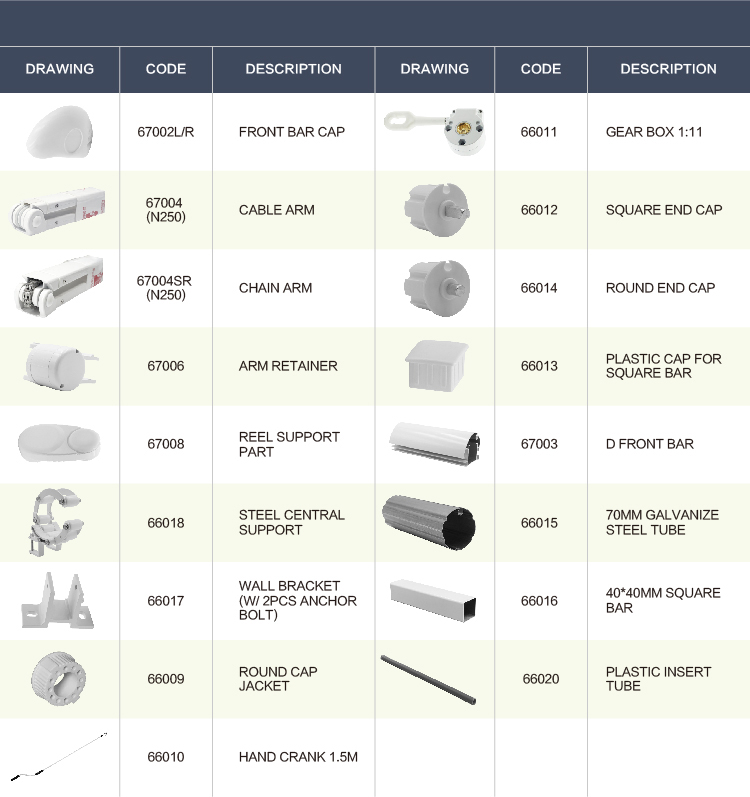

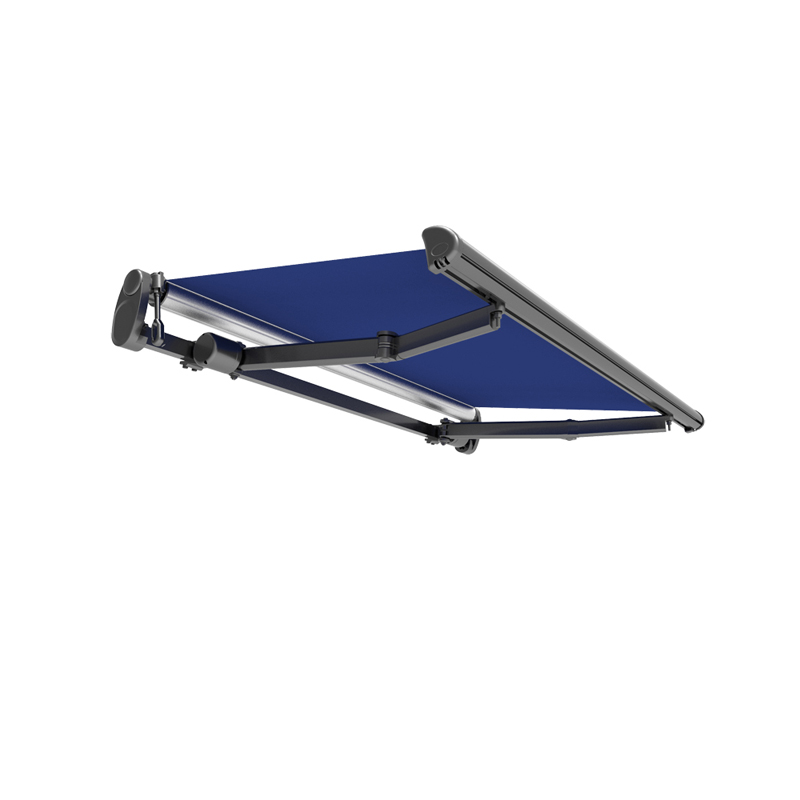

Product Name	A700 Retractable Awning Components
Roller:	Φ70mm,Φ80mm Aluminum or Steel
Front bar:	Aluminum 70.18x62.59mm
Square bar:	Steel 40x40mm
Arm:	55x27mm/60x30mm
Extra strong arm:	69x33mm/78x38mm
Gear Box:	1:11
Adjusted-angle:	3° to 75°
Frame:	Outdoor Powder Coated
Connector:	Aluminum Die Cast
Max size per unit:	Width 6.0m,Projection 4.0m
Arms Available:	1.5m,2.0m,2.5m,3.0m,3.5m,4.0m
