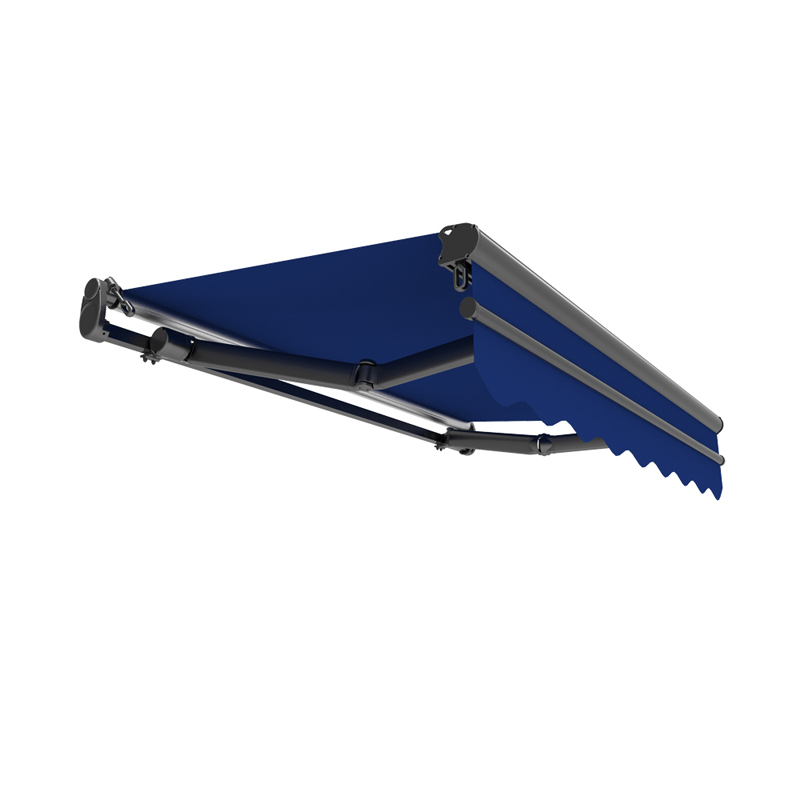

Heavy duty structure with dropped valance which can protect people from sunlight better. It can cover large areas of up to 6.0 m in width and 4.0 in projection with only two arms. Thanks to several awning structures join available, meet large sunshade area request. Available with manual and motorized operations.

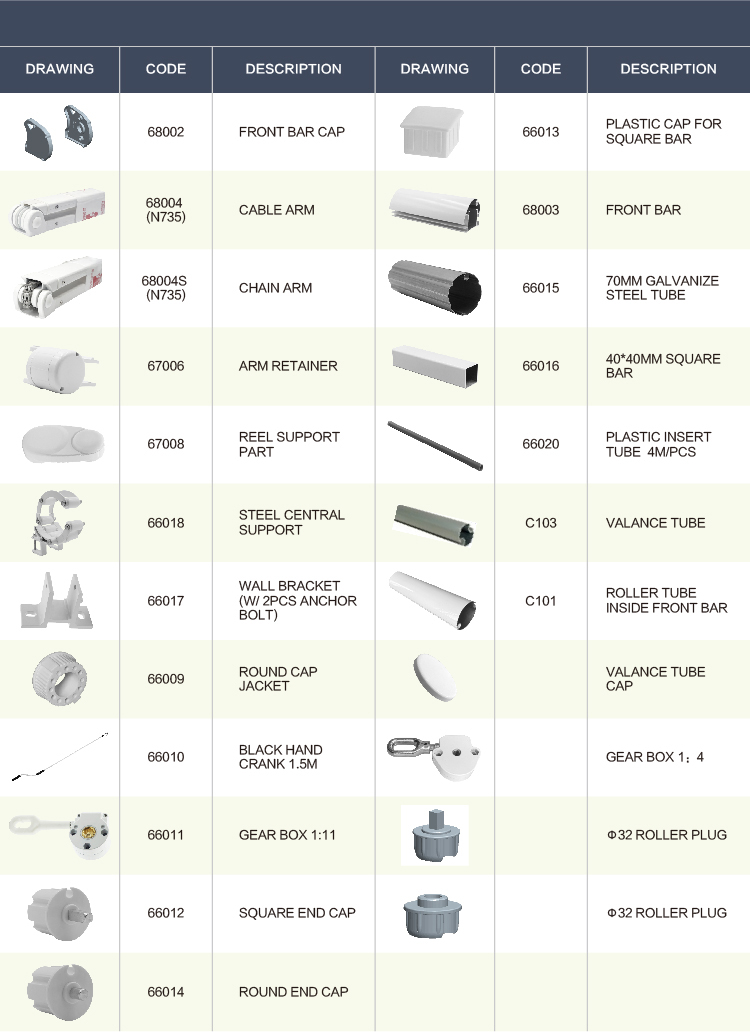

Product Name	A800 Retractable Awning Components
Roller	70mm,80mm Aluminum or Steel
Front bar	Aluminum 90.57x77.2mm
Square bar	Steel 40x40mm
Arm	76.2x33.8x1.82mm/66.5x32x1.37mm
Extra strong arm	69x33mm/78x38mm
Gear box	1:11
Adjusted-angle	3 to 75
Frame	Outdoor powder coated
Connector	Aluminum die cast
Max size per unit	Width 6.0m,projection 4.0m
Arms available	1.5m/2.0m/2.5m/3.0m/3.5m/4.0m
